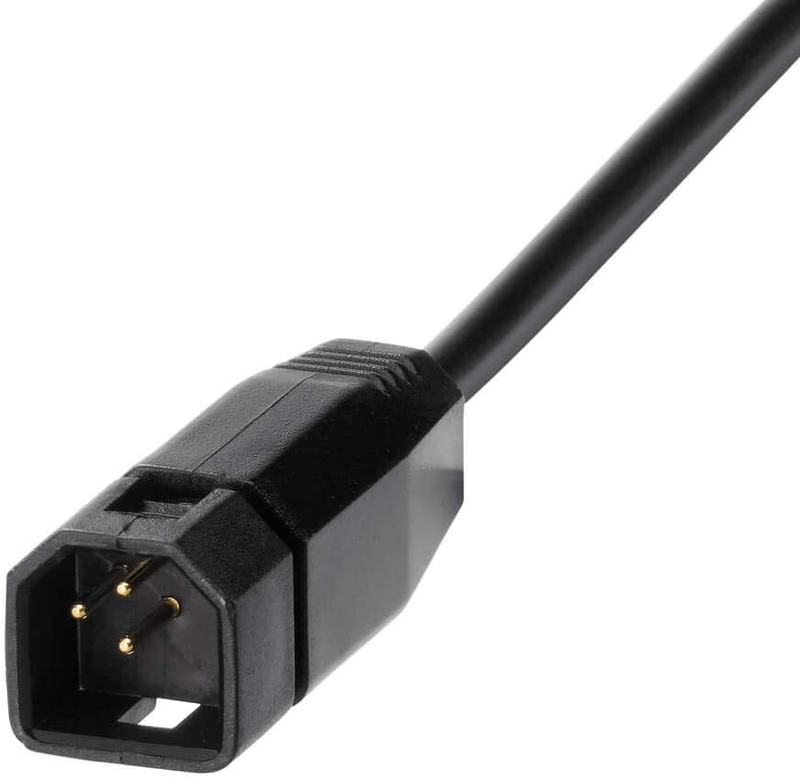

Transom Mount Transducer

Compatible with: HELIX 5 CHIRP G2 – GPS-equipped models only, HELIX 7 CHIRP G2/G3 – GPS-equipped and CHIRP DI G2 models, HELIX 7 CHIRP G2N/G3N – All models, HELIX 8 CHIRP G3N, HELIX 8 CHIRP G4N – All models, HELIX 9 CHIRP G2N/G3N/G4N – All models, HELIX 10 CHIRP G2N/G3N/G4N – All models, HELIX 12 CHIRP G2N/G3N/G4N – All models, ICE HELIX CHIRP G2 – All models (in Open Water Mode) Side Imaging and Down Imaging units can support this transducer as a 2D sonar only transducer.

Cable Length: 20 Feet

This transducer does not support Side Imaging or Down Imaging.

Dual Spectrum CHIRP: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz

ual Spectrum CHIRP- Max Depth: 1200ft (365m)

From the manufacturer
WHAT IS DUAL SPECTRUM CHIRP SONAR?
CHIRP stands for “Compressed High Intensity Radar Pulse.” That’s a fancy way of saying it can show you fish that other forms of 2D sonar can’t. How’s that? CHIRP scans the water for fish similar to the way the seek function on your truck’s radio scans the airwaves for FM stations. By covering a wide range of frequencies, CHIRP produces more accurate, more detailed returns of fish, structure and the bottom.
WHY HUMMINBIRD CHIRP
All forms of CHIRP are not created equal. Some competitive CHIRP technologies barely qualify for the term, using a subpar transducer or limiting you to a narrow band of frequencies. But Humminbird’s Dual Spectrum CHIRP gives you full spectrum capability, plus the power to select your own start and end frequencies. Humminbird also utilizes a proprietary, best-in-class transducer designed and built to maximize fish detail, as well as coverage area.
WHAT STYLE OF TRANSDUCER SHOULD I BUY?
TRANSOM
Mount on the transom (back of the boat). The impact release feature pivots transducer out of the way if struck by an object.
TROLLING MOTOR
Mount on most trolling motors. Low-profile shape reduces drag and hang-ups on weeds.
IN-HULL
Mount to inside of most single-layer fiberglass hulls using slow-cure epoxy.
PORTABLE
Mount on transom or side of most-smooth surface wood, aluminum or fiberglass boats. Heavy-duty suction cup holds transducer at trolling speeds only.
BRONZE
Ideal for large boats and boats with in-board motors. Not recommended for trailered boats. Professional installation recommended.
PLASTIC
Economic alternative to bronze transducer. Mounts on thinner hulls such as aluminum. Not recommended for trailered boats. Professional installation recommended.
ICE
This Dual Beam transducer can be used as or to convert any portable unit into an ice-ready fish finder.
